USB-to-Serial Converters

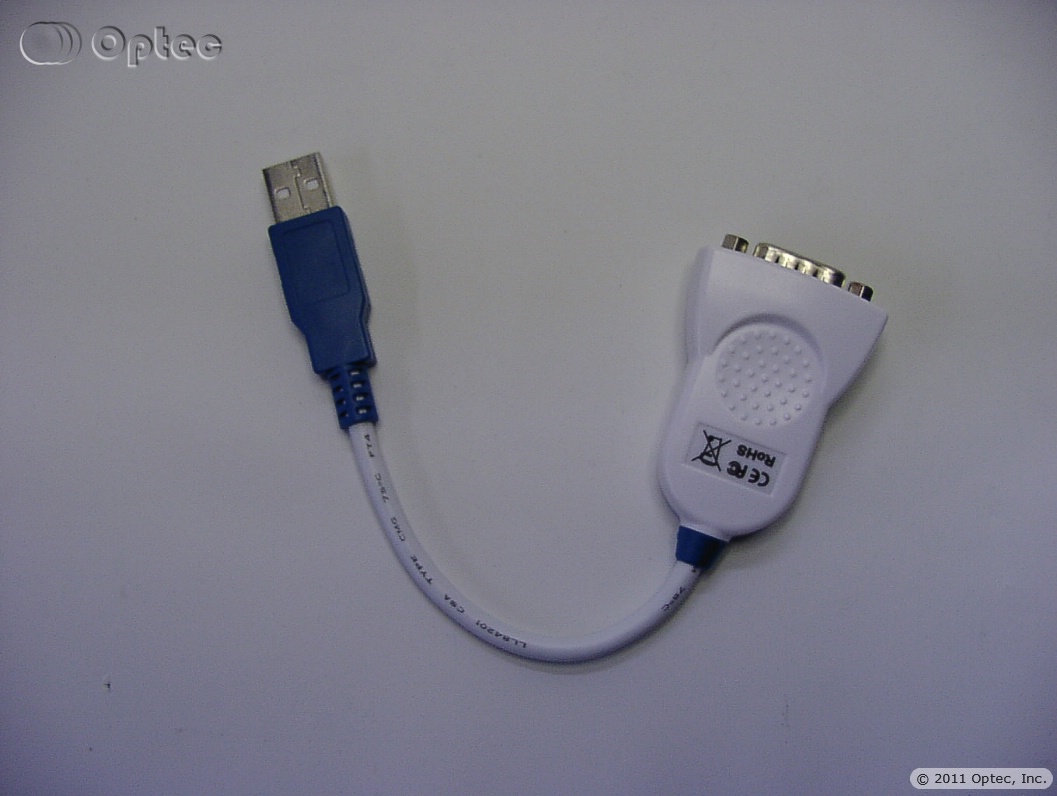

#17690 - Single Port USB-to-Serial Converter
The Single Port USB-to-Serial Converter is a conversion cable that allows connection of a single serial device to a computer via USB.
- Cable Length: 4" (100 mm)
- Based on FTDI chipset and drivers
- Reliable and robust
Compatible with:
- Any RS232 serial port
- All Optec serial devices including:
- TCF-S, TCF-Si, TCF-S3, TCF-S3i
- IFW, IFW-3
- Pyxis, Pyxis 3"
- Perseus 4-port selector
- SSP-3, SSP-4, SSP-5 photometers
How to Order:
Contact any Optec dealer, call Toll-Free 1-888-488-0381, email, or visit our ecommerce site: optecinc.us.
Additional USB Converters Available:

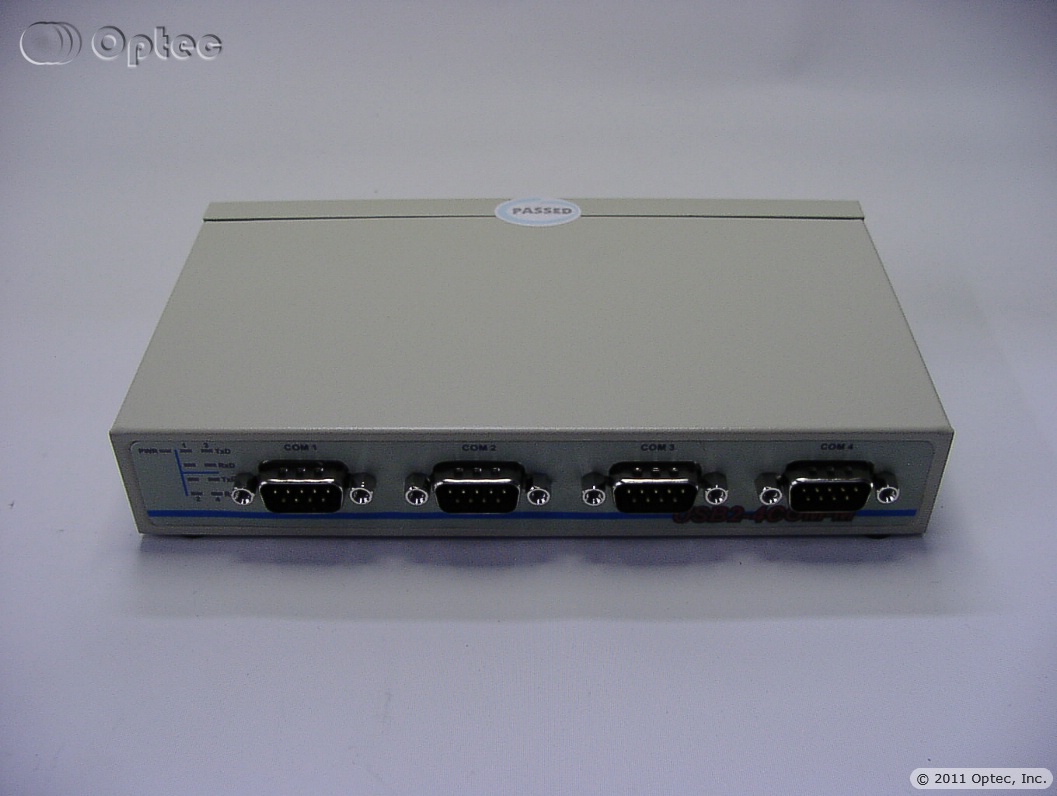

#17691 - Four Port USB-to-Serial Converter
The
EasySync USB2-H-1004-M Four Port USB-to-Serial Converter is a conversion box that
allows connection of up to four serial devices to a computer via USB.
Each port can be turned off with toggle switches for easy port
selection. This device includes a +5VDC power connection (cable not
included) for daisy chaining, but does not require external power to
operate via direct connection to a computer's USB port. Includes a 12'
USB cable and a standard rack-mounting plate.
- Overall Length 3.125" (79.4mm)
- Overall Width: 6.25" (159mm)
- Overall Height: 0.875" (22.2mm)
- Weight: 12 oz (340 g)
How to Order:
Contact any Optec dealer, call Toll-Free 1-888-488-0381, email, or visit our ecommerce site: optecinc.us.
Drivers and Setup Instructions:
Click here to download the latest FTDI drivers for this device
Click here to download the latest datasheet for this device
