Universal OPTEC-3600 Mount

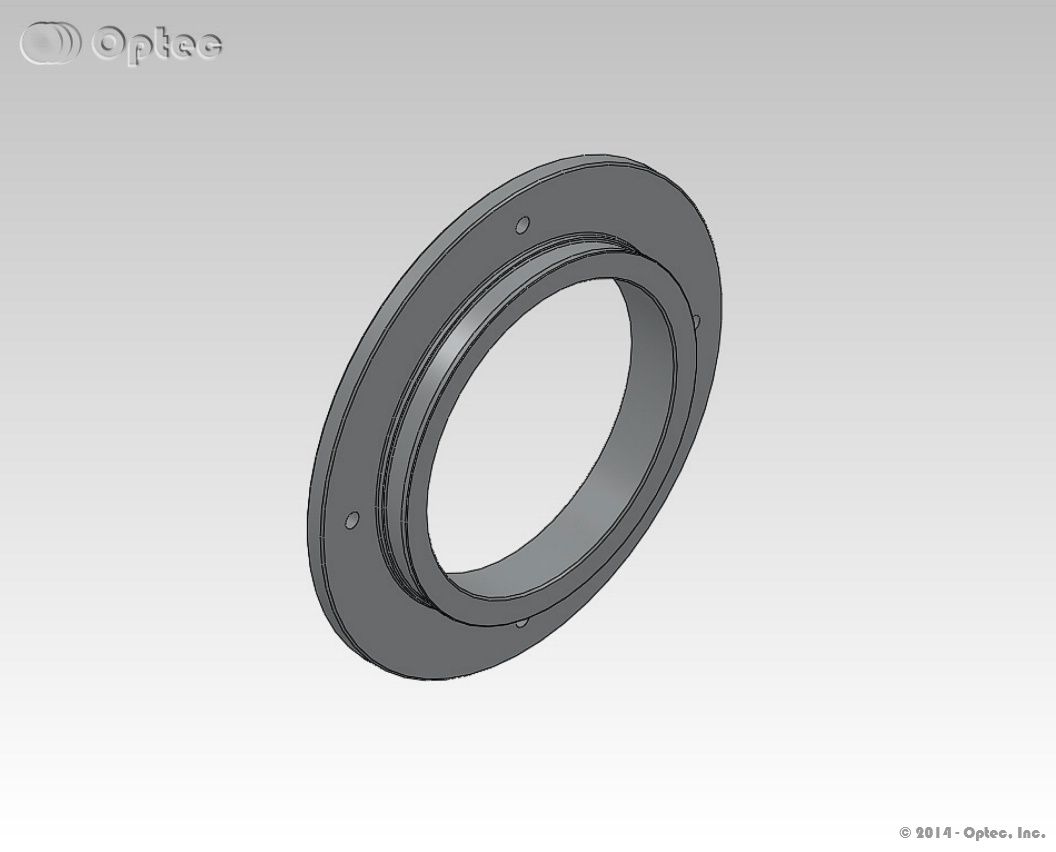

#17800 - Universal OPTEC-3600 Dovetail Mount
The
Universal OPTEC-3600 Dovetail Mount blank is a machinable plate that
can be cut, drilled, and modified to fit most any application where the
male 3.6" OPTEC-3600 dovetail is required. This mount presents the
male OPTEC-3600 dovetail for attachment of any device with an OPTEC-3600 receiver
including the TCF-S3 focuser, IFW-3, Pyxis 3" rotator, or Perseus 4-port
instrument selector.
- Overall Height: 0.56" (14.2mm)
- Clear Aperture: 3.05" (77.5mm)
- Weight: 5.2 oz (145 g)
- Pre-drilled holes: Four #8-32 threaded holes on 4.2" dia. bolt-circle
- Back-focus Usage: 0.2" (5.1mm)
- Telescope Side Connection: Flat mount with 4-hole bolt pattern
- Camera Side Connection: OPTEC-3600 male dovetail
Telescope Compatibility:
- Newtonian telescopes having a flat surface for mounting,
- Any telescope with a flat mounting surface.
How to Order:
Contact any Optec dealer, call Toll-Free 1-888-488-0381, email, or visit our ecommerce site: optecinc.us.
