OPTEC-2400 Dovetail Mount

Telescope Adapters for the TCF-S and IFW

Optec 2.4" Dovetail Mount

The OPTEC-2400 circular dovetail mount is used for the TCF-S focuser and IFW filter wheel to allow easy connections from most any telescope. If your scope or accessory is not listed, do not hesitate to call. These adapters are required to fit the TCF-S and IFW 2-inch models to various telescopes. One end has the necessary fittings for the particular telescope and the other has a protruding ring with dovetail groove. The three #8-32 setscrews in the TCF-S or IFW clamp down on this ring. Adapters are also compatible with the TCF-S. Most mounts are made from high strength 6061 aluminum alloy and black anodized.

#17458
AstroPhysics 2.7" Telescope Mount.

#17457
Celestron C11/14 Telescope Mount.

#17454
Meade 8" / Celestron C8 & C9.25 SCT Telescope Mount.

#17455
Meade LX200 3-inch Telescope Mount.

#17456
Meade 16" SCT 4-inch Telescope Mount.

#17417
PlaneWave CDK 12.5 Telescope Mount.

#17418
PlaneWave CDK 17 / 20 Telescope Mount.

#17656
Takahashi 2.2" FS-78 Telescope Mount

#17451
Takahashi 2.5" Sky 90 Telescope Mount.

#17453 - Takahashi 2.8" Female Threaded Telescope Mount.

#17453
Takahashi 2.8" (72mm) Female Mount.

#17651
Takahashi M72 (2.8") Male Mount

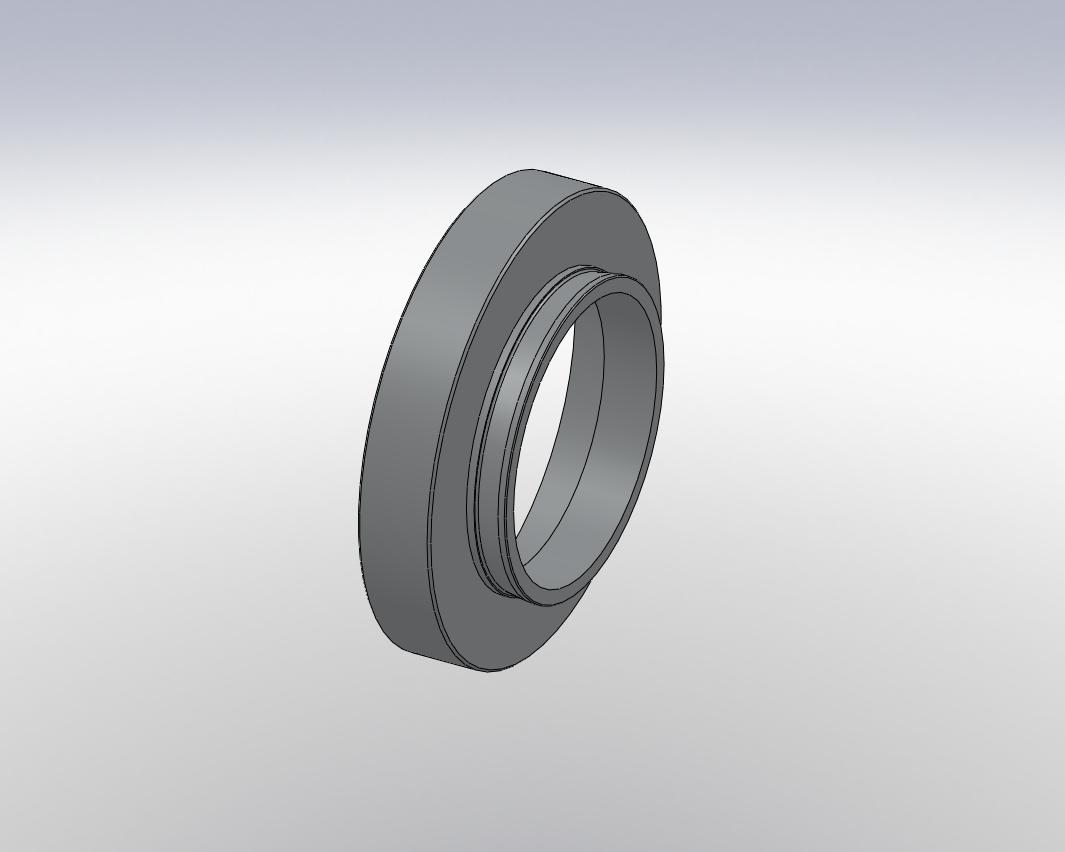

#17652
TeleVue 3-inch NP101 Telescope Mount.

#17459
2" Barrel Mount for any 2-inch Focuser.

#17416
Universal OPTEC-2400 Mount Blank.

#17653
OPTEC-2400 Extender/Spacer provides 1/2" additional back spacing.

#17655
OPTEC-2400 Extender/Spacer provides 1-inch additional back spacing.

#17658
AstroPhysics 2.7" Female Mount

#17659
OPTEC-2400 Standard Female Mount fits any OPTEC-2400 Dovetail

#17962
Apogee 2.5" Male Mount

#19650
T-Thread Female Mount

#19651
Pentax Female Telescope Mount

#19652
C-Thread Receiver Mount

#19660
FLI PDF 4" Telescope Mount

#19661
Vixen VMC260 Telescope Mount

#19662
TeleVue NP101IS Telescope Mount

#19667
Intes MCT-180/MK-69 Telescope Mount

Additional Resources

If you cannot find the exact stock adapter to fit between your telescope and imaging train components, visit PreciseParts. The Build-An-Adapter application allows you to select two devices to connect and choose an appropriate length to maintain any back-focus considerations. Orders are usually filled within a week or so and each adapter is guaranteed to fit.

Site Menu:

Catalog Links:

Compatible with...

#17670
TCF-S Focuser

The TCF-S focuser fits securely over the OPTEC-2400 male dovetail ring and is held in place with three setscrews.

#17350
IFW Intelligent Filter Wheel

The front plate of the IFW filter selector fits securely over the OPTEC-2400 male dovetail ring and is held tightly in place with three oval point stainless setscrews.

Engineering Details:

OPTEC-2400 Dovetail Male Mount

Detailed drawings for the male 2.4-inch diameter OPTEC-2400 dovetail mount.

Click here or on the PDF icon to download.

OPTEC-2400 Dovetail Female Mount

Detailed drawings for the female 2.4-inch diameter OPTEC-2400 receiver mount.

Click here or on the PDF icon to download.
