FocusLynx WiFi Wireless Option

Discontinued - replaced with Optec 802.11bg WiFi board
Click here for stock item #19755.

#19535 - FocusLynx 802.11 WiFi Wireless Network Option

The FocusLynx Control Hub includes a wired Ethernet connection and interface as standard. However, many users prefer to go completely wireless with their telescope setups. The FocusLynx 802.11 WiFi wireless networking option eliminates the need for any communication wires to the control PC or tablet. Taking advantage of the 802.11 networking standard, the FocusLynx WiFi option allows true wireless connectivity. Only power need be applied to the FocusLynx hub with this option.

With the WiFi Option in place, an Ad-Hoc network is created by the wireless module that allows easy communication and integration into any existing 802.11 wireless network. Control of the FocusLynx hub can be accomplished through Optec's iPhone or Android OS apps using the built-in wireless web pages allowing the user to focus through most any smartphone. Concurrent communications ensure FocusLynx Commander software, ASCOM client software, FocusLynx Hand Control, and smartphone are all updated simultaneously.

The #19535 FocusLynx WiFi Option can be added to any existing FocusLynx system at any time. Contact Optec Technical Support with questions or for assistance with your configuration.

Watch the video below and order today!

Specifications:

WiFi Module: Microchip MRF24WB0MB/RM
WiFi Type: IEEE 802.11 2.4GHz RF Transceiver
Network Compatibility: 802.11b Networks
Antenna: Integrated and external type MRF24WB0MB included
Temperature Range: -40°C to +85°C
Network Protocols: Ad hoc, WEP, WPA supported
Range: up to 400m (1300 ft.) [long-range antenna available]

Installation Video:

For ease of installation and configuration of the WiFi Option, we have prepared the video demonstration below:

How to Order:

Contact any Optec dealer, call Toll-Free 1-888-488-0381, email, or visit our ecommerce site: optecinc.us.

Additional Details and Resources:

The Datasheet for MRF24WB0MA/MRF24WB0MB is available from the Microchip website: https://ww1.microchip.com/downloads/en/DeviceDoc/70632C.pdf

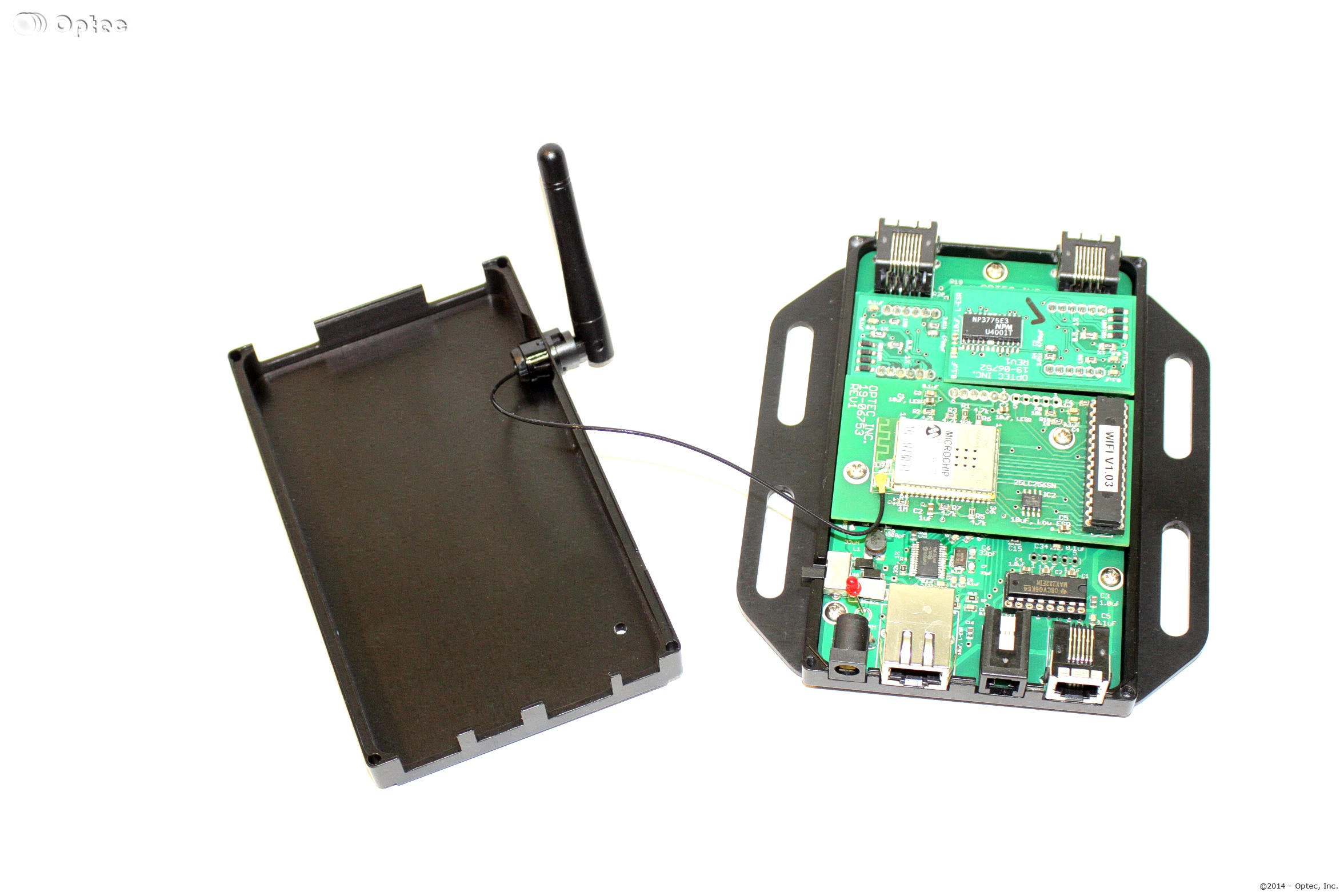

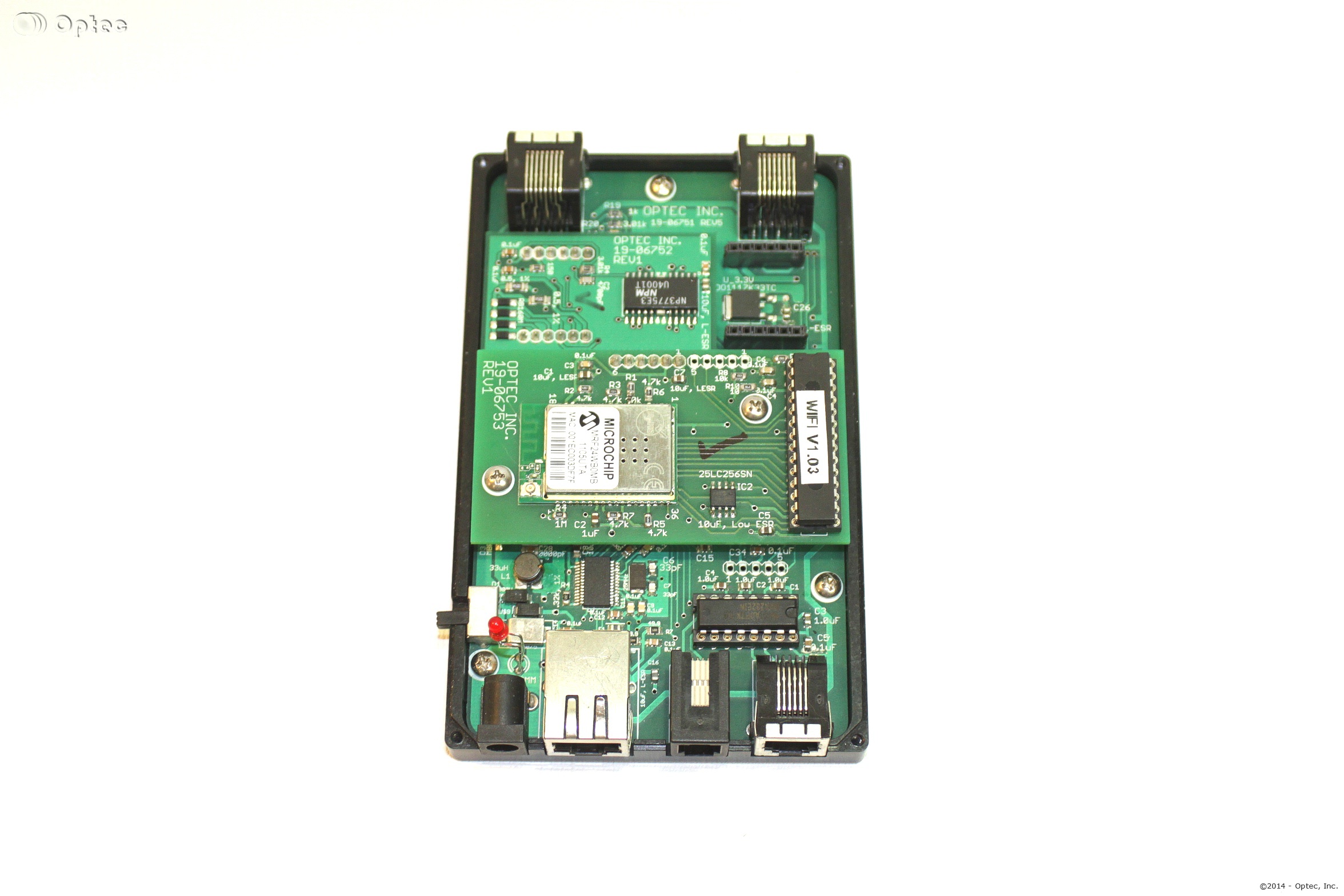

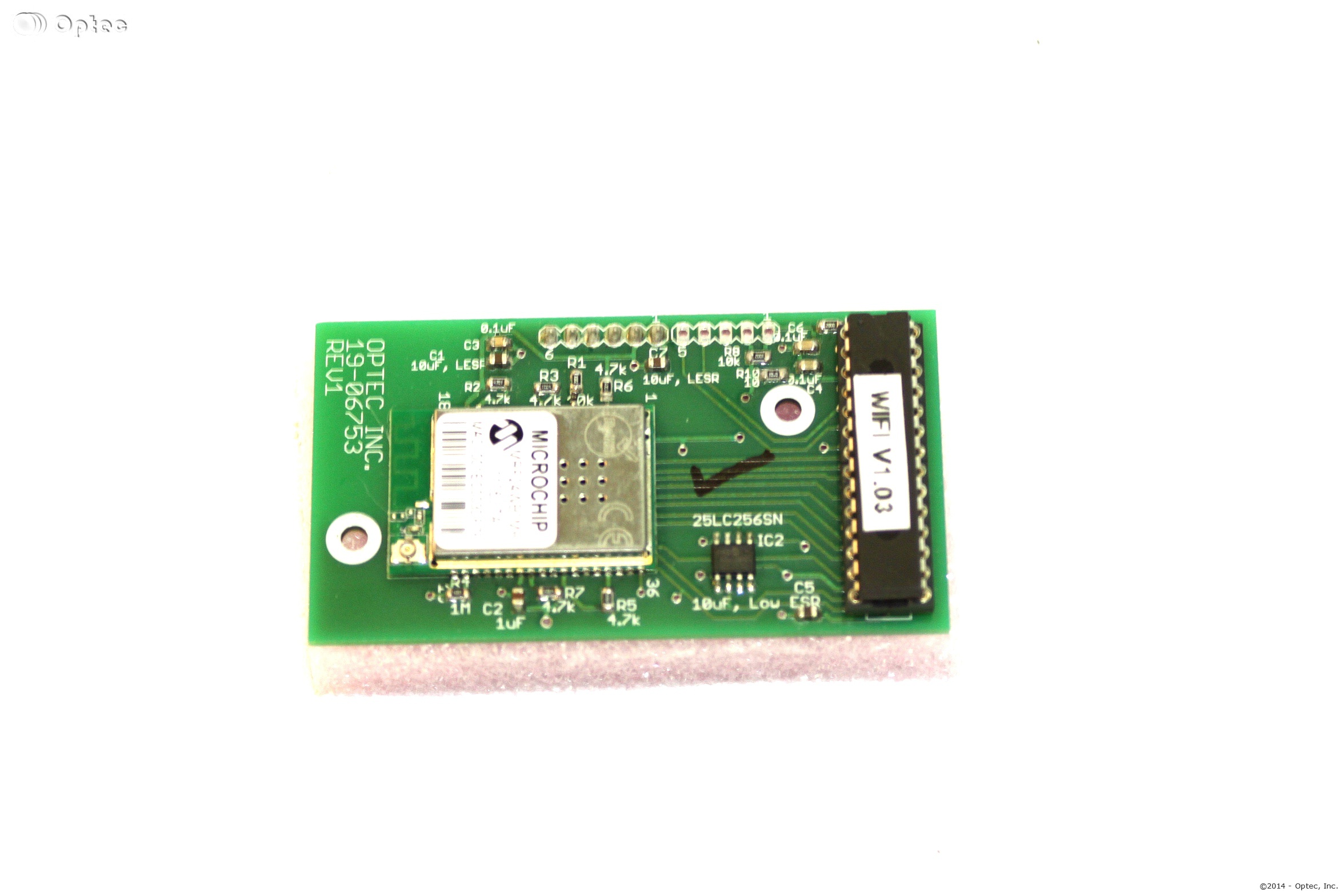

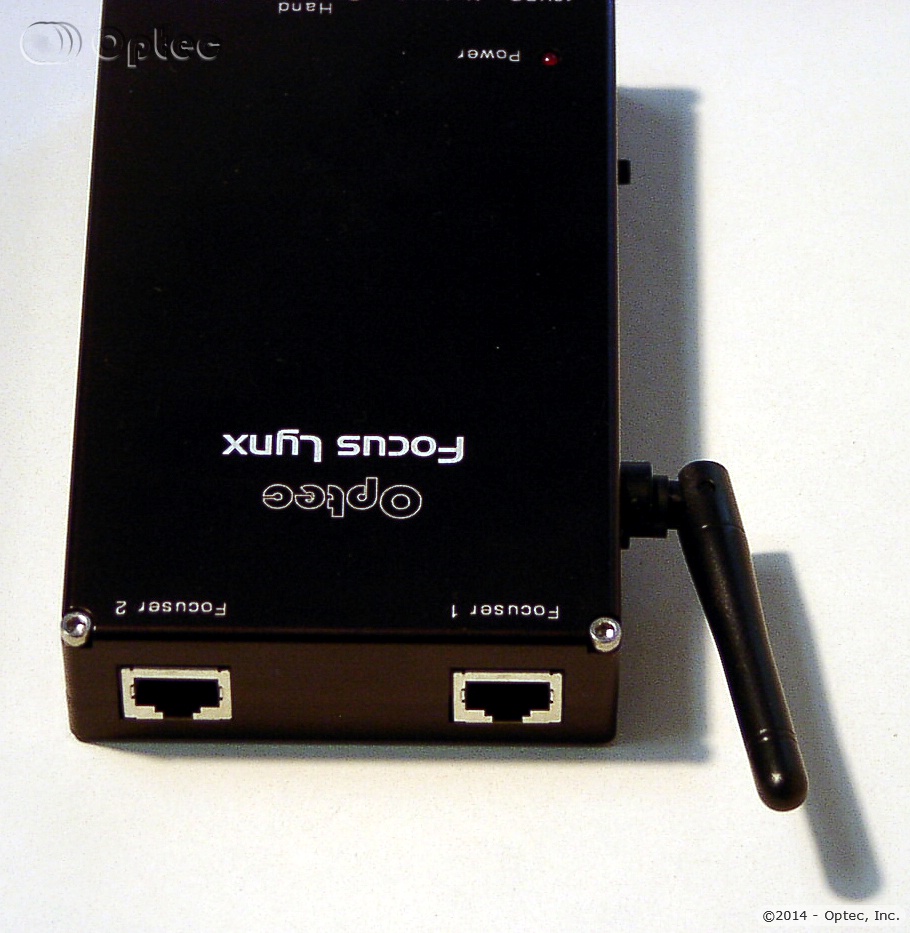

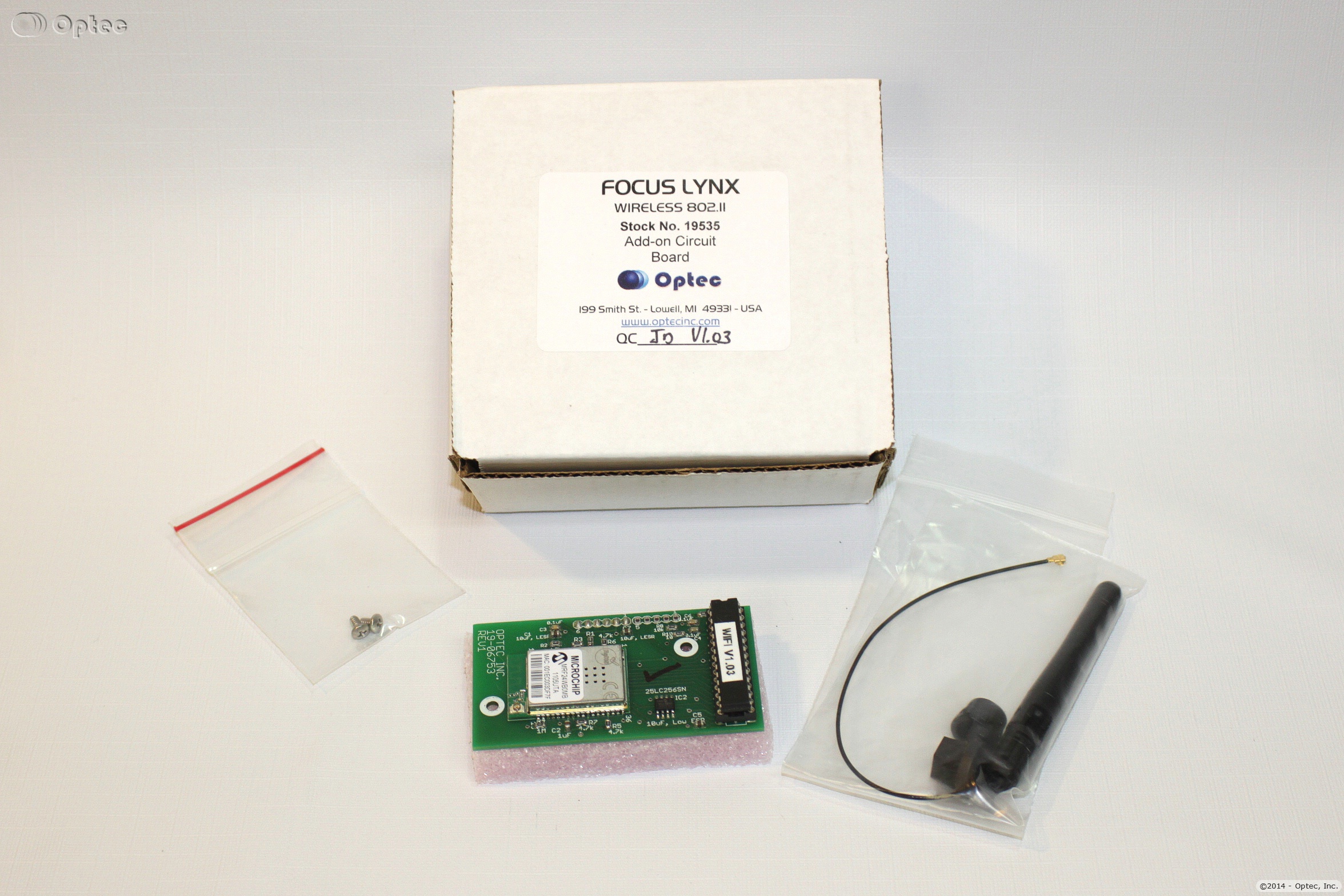

Additional Product Views:
