DirectSync
ACF for Meade Telescopes
Discontinued - Product no longer available for purchase.
See DirectSync ACFX motor with integrated ThirdLynx controller.
Meade ACF Motorized Focuser with FocusLynx
#19775 - DirectSync ACF for the Meade "Reverse-Crayford" Focusers
Optec's new
DirectSync ACF focus motor is the perfect solution for both
manual and automatic focusing available. Combined with Optec's
FocusLynx Dual-Focuser controller system,
DirectSync ACF allows imagers to quickly switch between manual
dual-speed focusing or auto-focus using ASCOM tools such as
FocusMax,
Sequence Generator Pro, or
@Focus3.
Meade's newest Advanced Coma-Free Schmidt Cassegrain Telescopes (ACF SCT) offer some of the best views and imaging opportunities to the amateur astronomer. is the perfect solution designed to motorize Meade's f/8 ACF telescopes with the dual-speed focuser.
Meade's Internal Reverse Crayford Focuser
Meade
introduced the innovative internal
Crayford-style primary mirror focusing system with the f/8 LX-800
Advanced Coma-Free telescopes. The dual speed 7:1 focuser features
a large focus mechanism with fine and coarse focus knobs. All
current Meade f/8 ACF telescopes include this outstanding focuser.
As described in the Meade LX800 Instruction Manual, the ACF features an "Internal Crayford-style primary mirror focusing system with a dual speed 7:1 focus control, on ACF OTA’s, eliminates image shift and mirror flop. Precise focus is a snap (patent pending) "
Now Available with Integrated ThirdLynx Controller
Visit our new website for the DirectSync ACFX motor with integrated ThirdLynx control circuit. Fully compatible with all FocusLynx software drivers.
DirectSync ACF Motor Installation

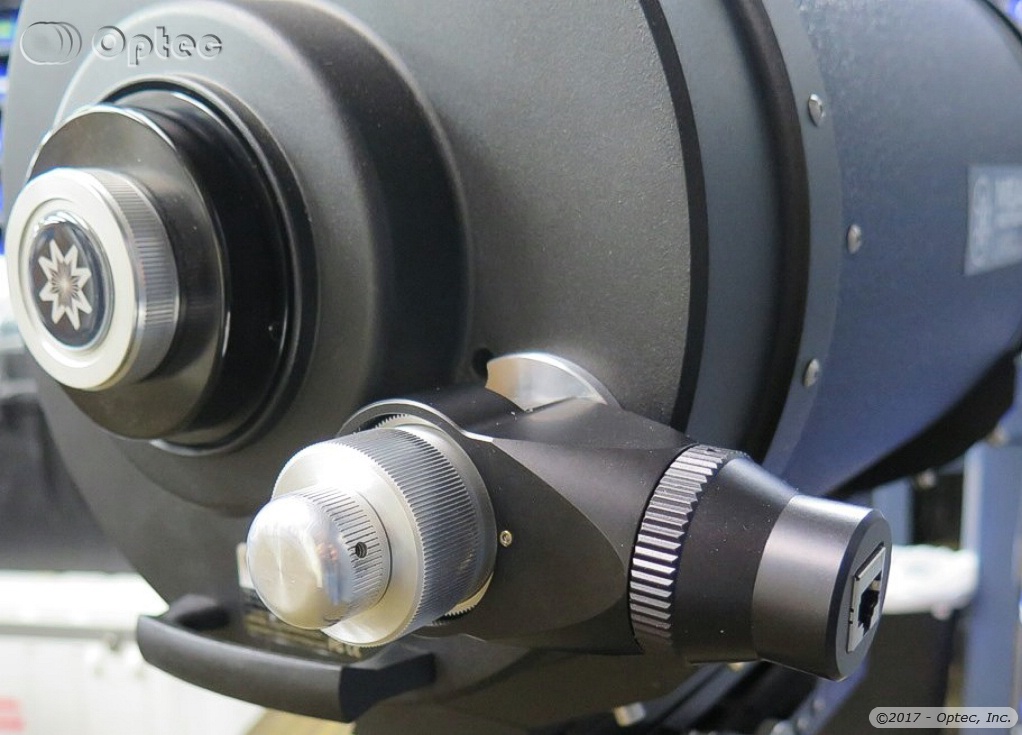

Installation of the DirectSync ACF motor is easy to accomplish and requires removing the fine and coarse focus knobs. A replacement geared coarse focus knob is installed and easily adjusted. Meade's fine focus knob is re-used maintaining the smooth, 7:1 dual speed focuser motion. With DirectSync's unique clutch design, manual focus can be performed at the scope while motor engagement requires only a slight twist of the motor housing. A more elegant solution does not exist.
Click
here
for the
DirectSync
ACF Installation instructions.
FocusLynx Control Hub
Coupled with the FocusLynx controller, DirectSync ACF can be used in both manual and automatic focusing modes. Fully ASCOM compliant, FocusLynx Commander software works in conjunction with higher level client software such as FocusMax and Maxim D/L as well as CCDSoft and TheSky X to provide auto-focusing for a wide variety of manual focusers.
Specifications:
DirectSync ACF Motor (#19775)
- Motor Housing Width: 1.9" (48mm)
- Overall Length: 3.35" (85mm)
- Weight: 5.2 oz (150 g)
- Step Resolution: 1.1 micron per step
- Stepper Motor: Bi-polar NPM 15-ohm with 1:25 gearhead
- Connection to FocusLynx: Standard Ethernet cable (included)
- Temperature Probe: Integrated Digital Sensor type TMP04FT9Z
- Current Draw: Maximum draw approx. 350mA
FocusLynx Controller (#19690)
- Length: 5.1" (130mm)
- Width: 3.2" (81mm)
- Height: 1.0" (27mm)
- Weight: 9.8 oz (280 g)
- Connectivity: USB/Serial, Ethernet, and WiFi
- Hand Control: Optional
- WiFi Connection: Optional
- Second Stepper: Optional
- Input Power: 12VDC universal power supply (110 to 230VAC input)
- Software Drivers: ASCOM local server, X2 native drivers for TheSky X, and Alpaca Cross-Platform.
Compatible with:
- Meade LX850 f/ ACF 10", 12", 14, and 16" telescopes,
- Meade LX800 f/ ACF 10", 12", 14, and 16" telescopes,
- Meade LX600 f/8 ACF 10", 12", 14" and 16" telescopes,
- Any Meade OTA's with the dual-speed "Reverse Crawford" focuser.
How to Order:
Contact any Optec dealer, call Toll-Free 1-888-488-0381, email, or visit our ecommerce site: optecinc.us.
The DirectSync ACF includes the #19775 DirectSync ACF motor only for owners of the FocusLynx Control Hub. Other options may be ordered separately.
